Photovoltaics surge protection T2 DS 50 PV

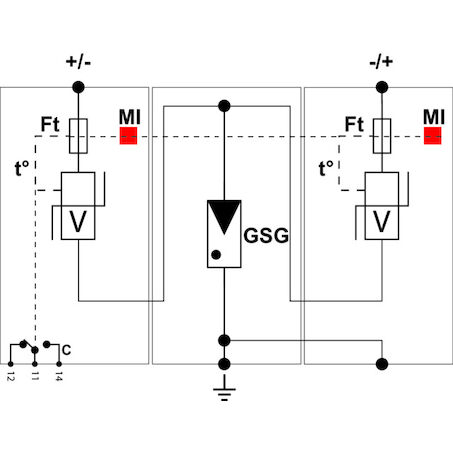

Characteristics
- Surge protector photovoltaic type 2
- Iimp = 5kA/pole (10/350
- International disconnection, status indicator
- follow and operating current: none
- remote signaling

Short circuit resistance (Icw)
1 kA
Follow current [IF]
0 kA
Fault indication
mechanisch, Rot
Material housing
Thermoplastik PEI UL-94-V0
Signaling on the device
Optic
Connection cross section solid / stranded max.
1.5 mm²
Switching capacity signaling contact
250 V/0,5 A (AC) / - 30 V / 2 A (DC)
Energetically coordinated protective effect to the terminal
Yes
Exhausting
No
Nominal voltage DC
1000 V
Mounting method
DIN rail (top hat rail) 35 mm

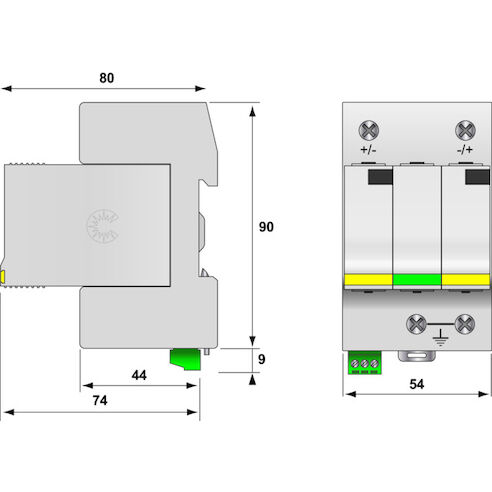

Construction size
3 modular spacing
System configuration DC
Yes
Integrated backup fuse
No
Total discharge current (8/20) (L N-PE)
60 kA
Degree of protection (IP)
IP20
Test standards USA
UL 1449 ed.3
Test standards Europe
EN 50539-11
Test standards France
UTE C61-740-51

Article No. E-Number SPD type Signaling contact max. discharge current (Imax) Operation voltage max. [Uc] Response time [ta] Voltage protection level [Up] Nominal discharge surge current (8/20) {VPE Menge}

Photovoltaics surge protection 296.480.391 T2 Yes 40 ≤1200VDC ≤25 2.6 15 1
