  7. Section insulator 655.500.082
Categories

Section insulator 655.500.082

Type: HS25

Cart Download data sheet



Application
For regional trains and heavy rail
Maximum speed up to 200 km/h

Characteristics
Insulator rods revolvable in case of wear

Material
GRP/PTFE, Cu, CuNiSi, stainless steel

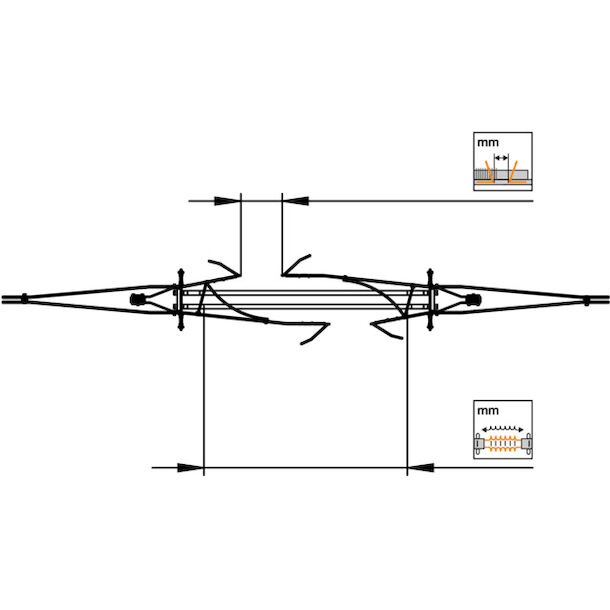

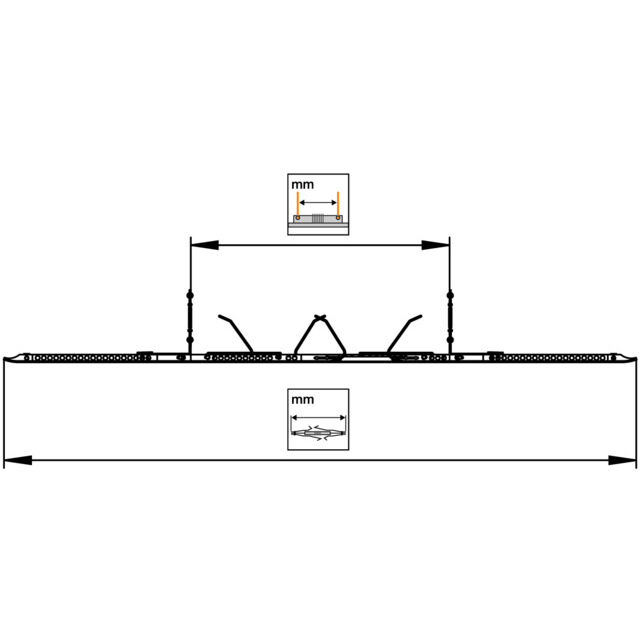

Legend
1) For standard contact wire
2) For large contact wire
A) For 1 contact wire system
B) For 2 contact wire system

Article No. 655.500.082
Technical specification
Contact wire section (min/max) 120.0 - 170.0 mm²
Contact wire groove (min/max) 5.6 - 6.9 mm
Creepage distance 1100
Length between suspension 1350
Length between contact wire 1600
Air gap 220
Total length 3280
Recommended service load (min/max) 8.0 - 30.0 kN
Specified mechanical load (SML) 80
Minimum breaking load of the section insulator 120
comment 2, A
Commercial specification
Customs number 85353000
country of origin NUL
Texte
comment 2, A
Logistic specification
Kilo / piece 21.5
