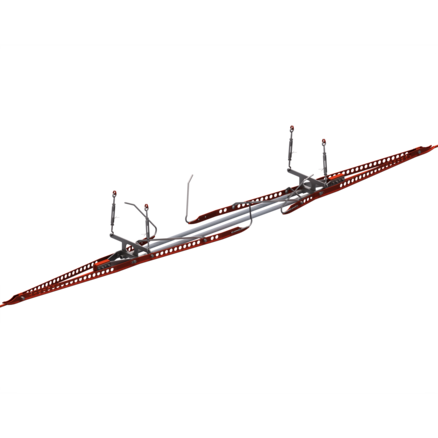

HS3
Application
For regional trains and heavy rail
Maximum speed up to 200 km/h
Material
GRP/PTFE, Cu, CuNiSi, stainless steel
Legend

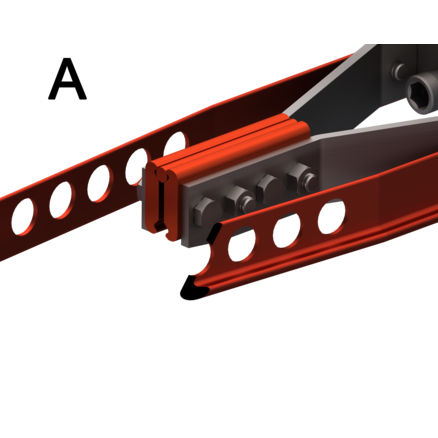

A) For 1 contact wire systems

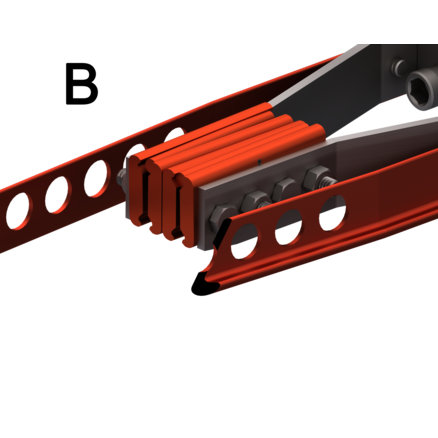

B) For 2 contact wire systems
Contact wire groove (min/max)
5.6 - 6.9 mm
Creepage distance
600 mm
Length between suspension
850 mm
Length between contact wire
1100 mm
Air gap
55 mm
Total length
2700 mm
Specified mechanical load (SML)
80 kN
Minimum breaking load of the section insulator
120 kN
